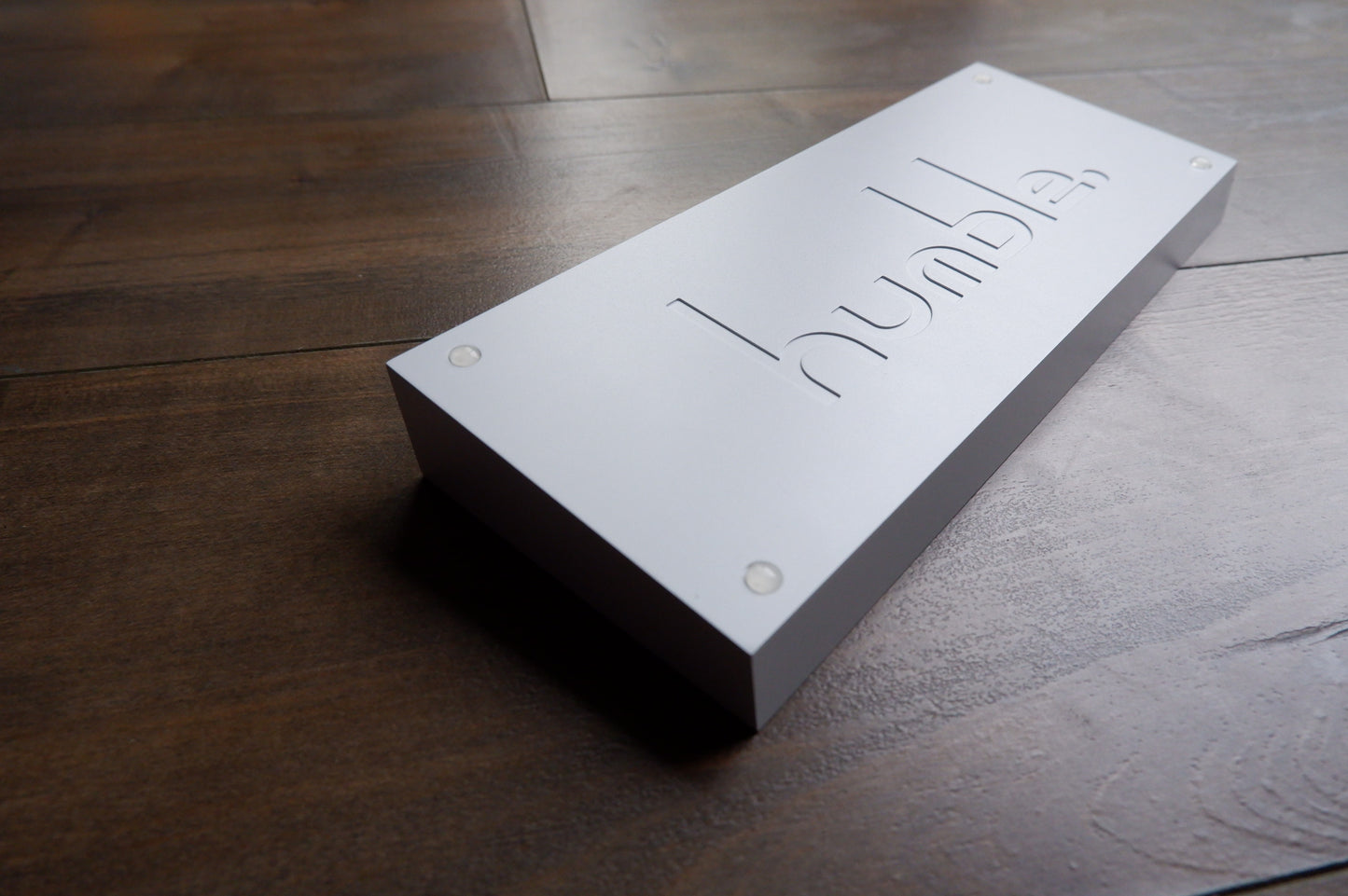

humble40 extras are finally here!

The humble40 combines no-nonsense mounting in a simple yet handsome 40% package. The 12.5u layout ensures great compatibility with most keycap sets. Its features include:

Case/Plate:

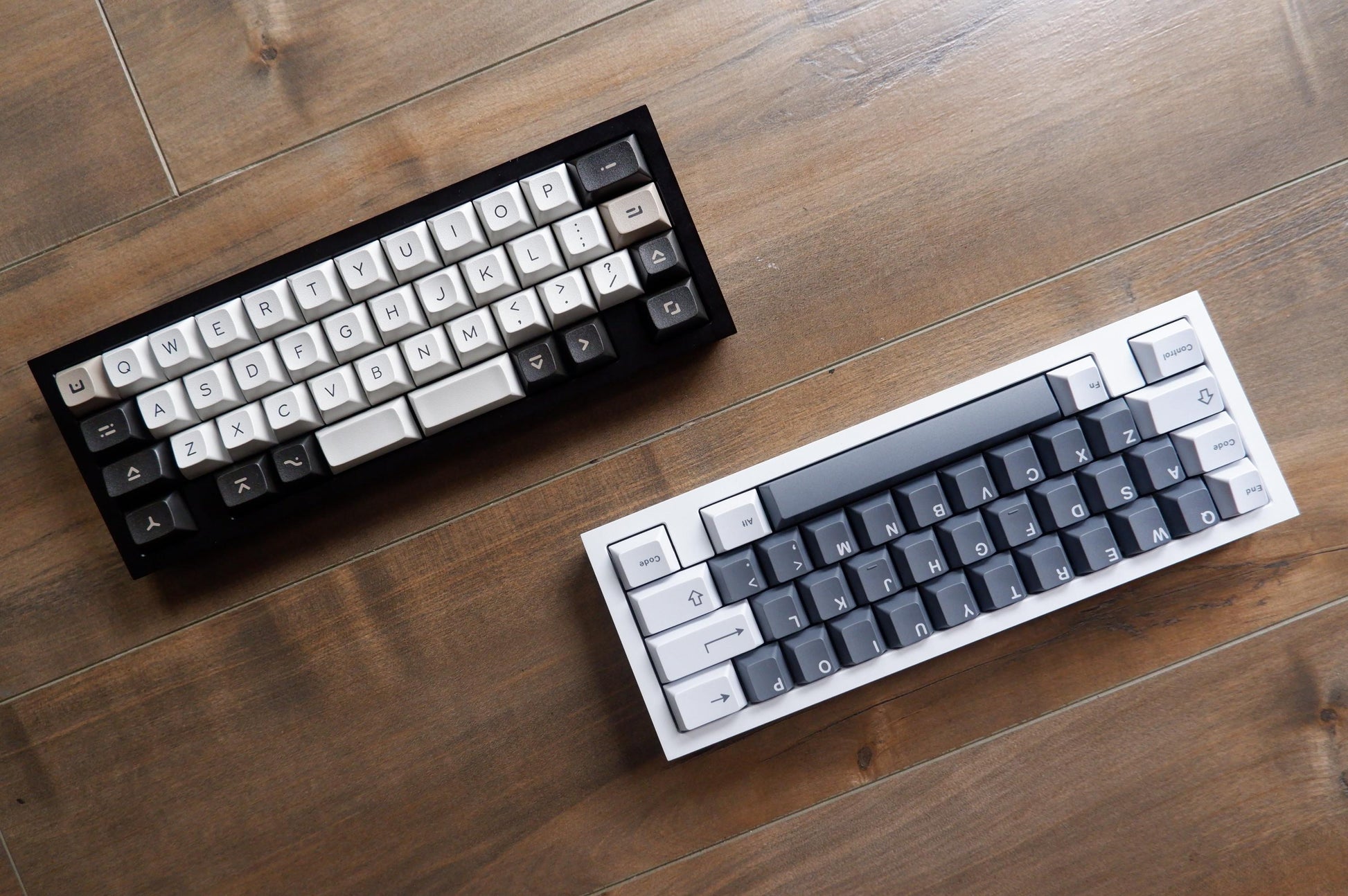

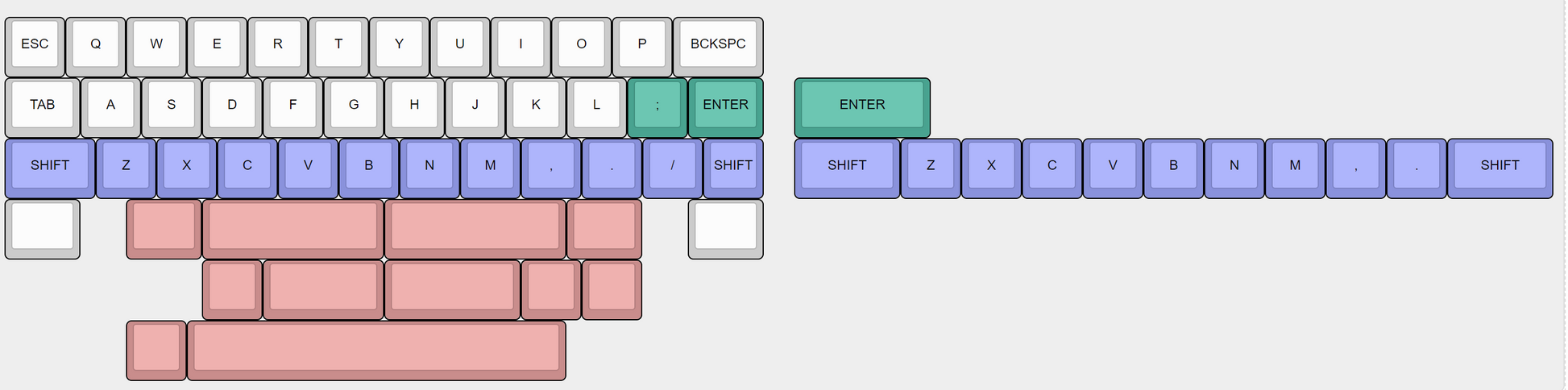

-12.5u WKL layout

-Bottom mount. Compared to other bottom mount boards, there is a decent amount of flex due to the cutouts for the blockers and using only 4 mounting points for the plate/PCB.

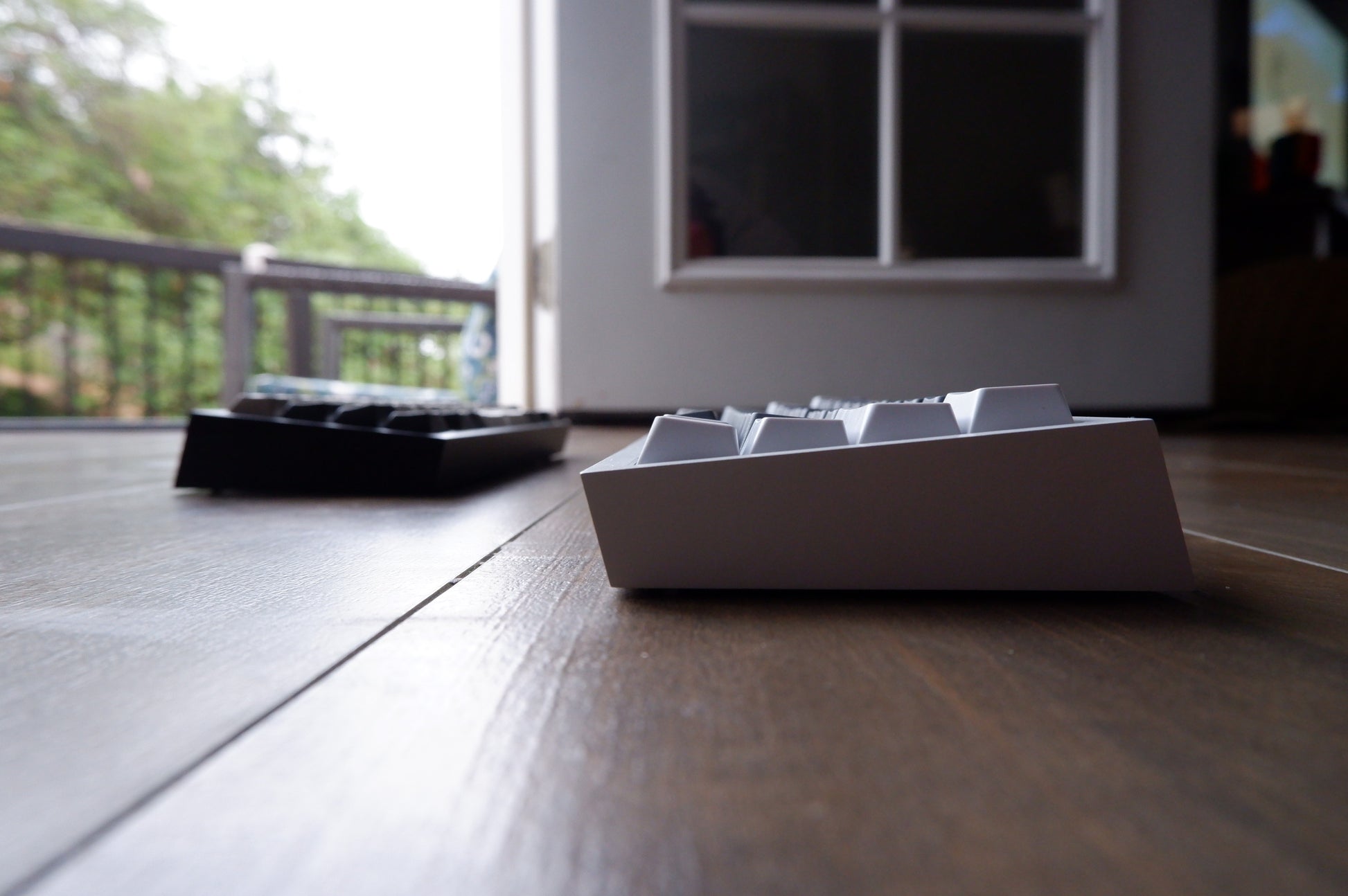

-5.5 degree typing angle with 19 mm front height.

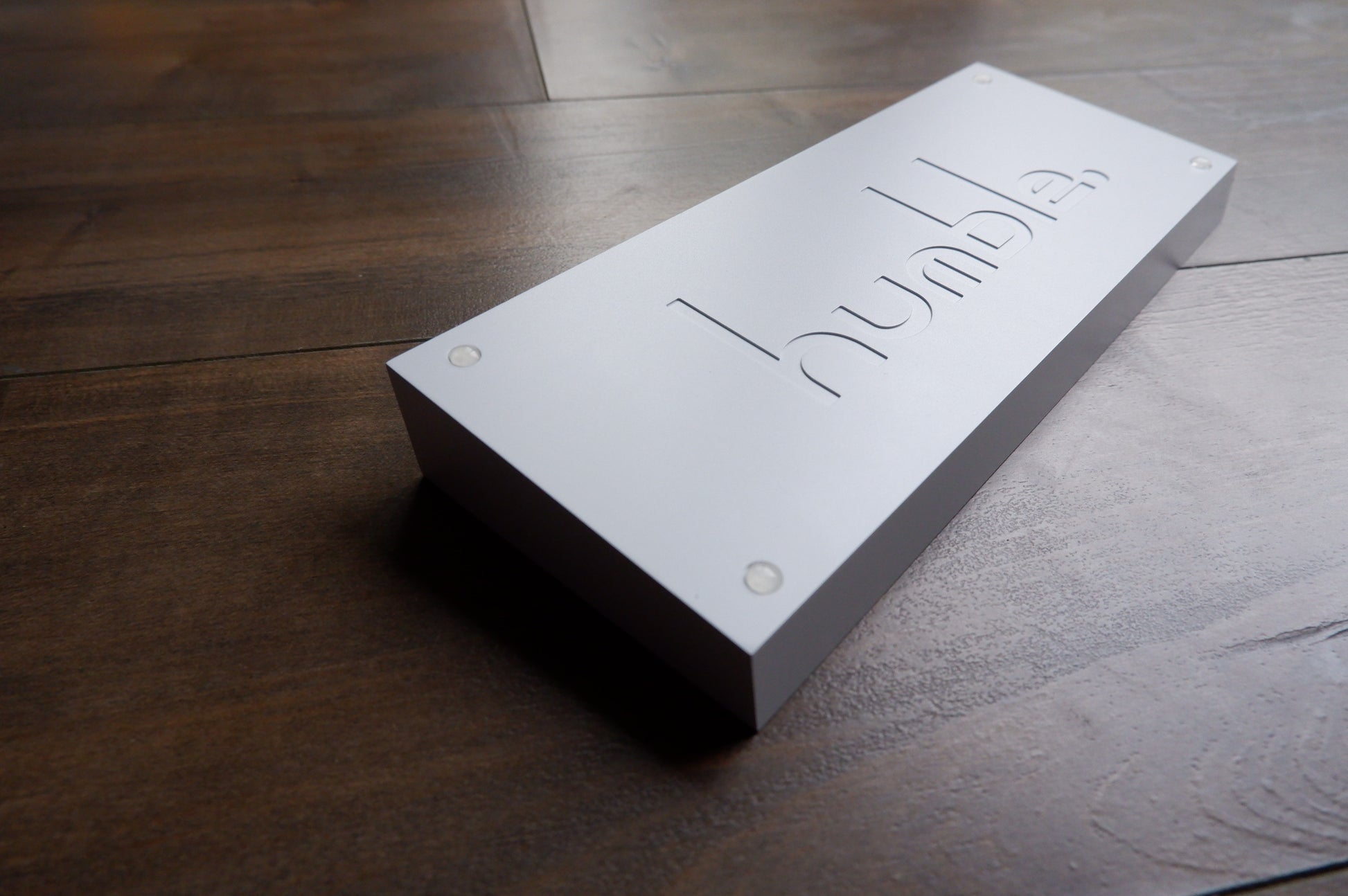

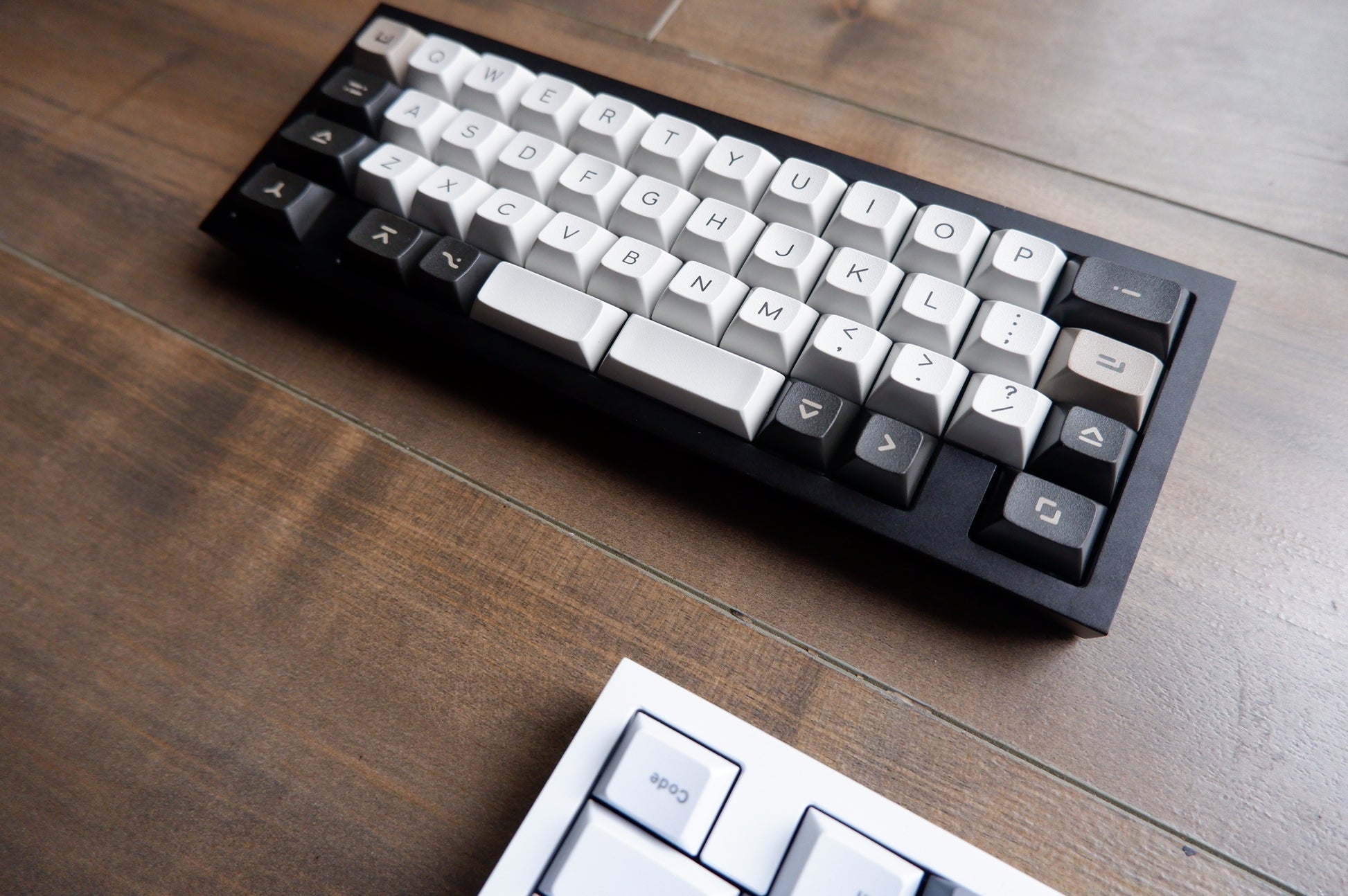

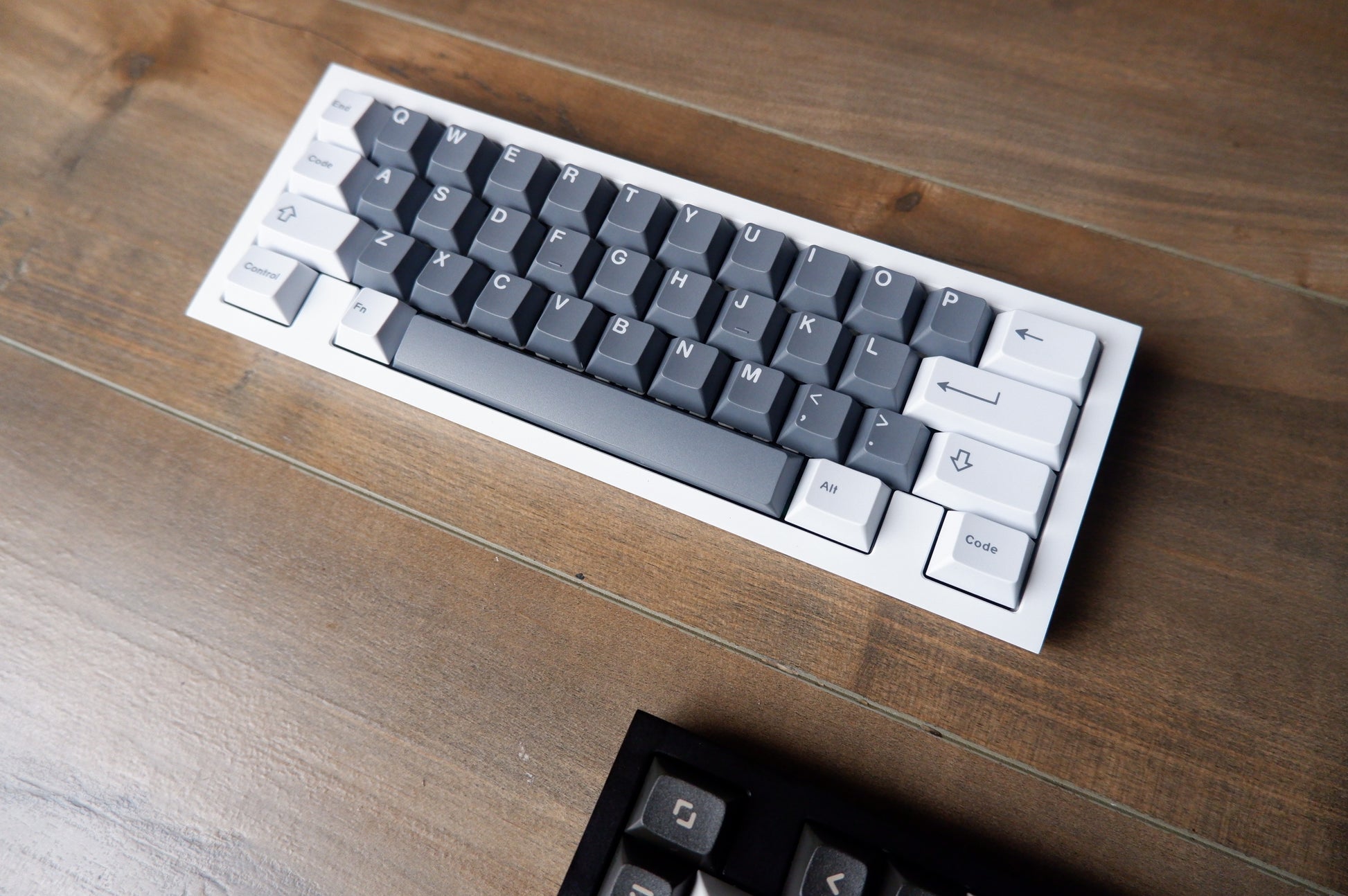

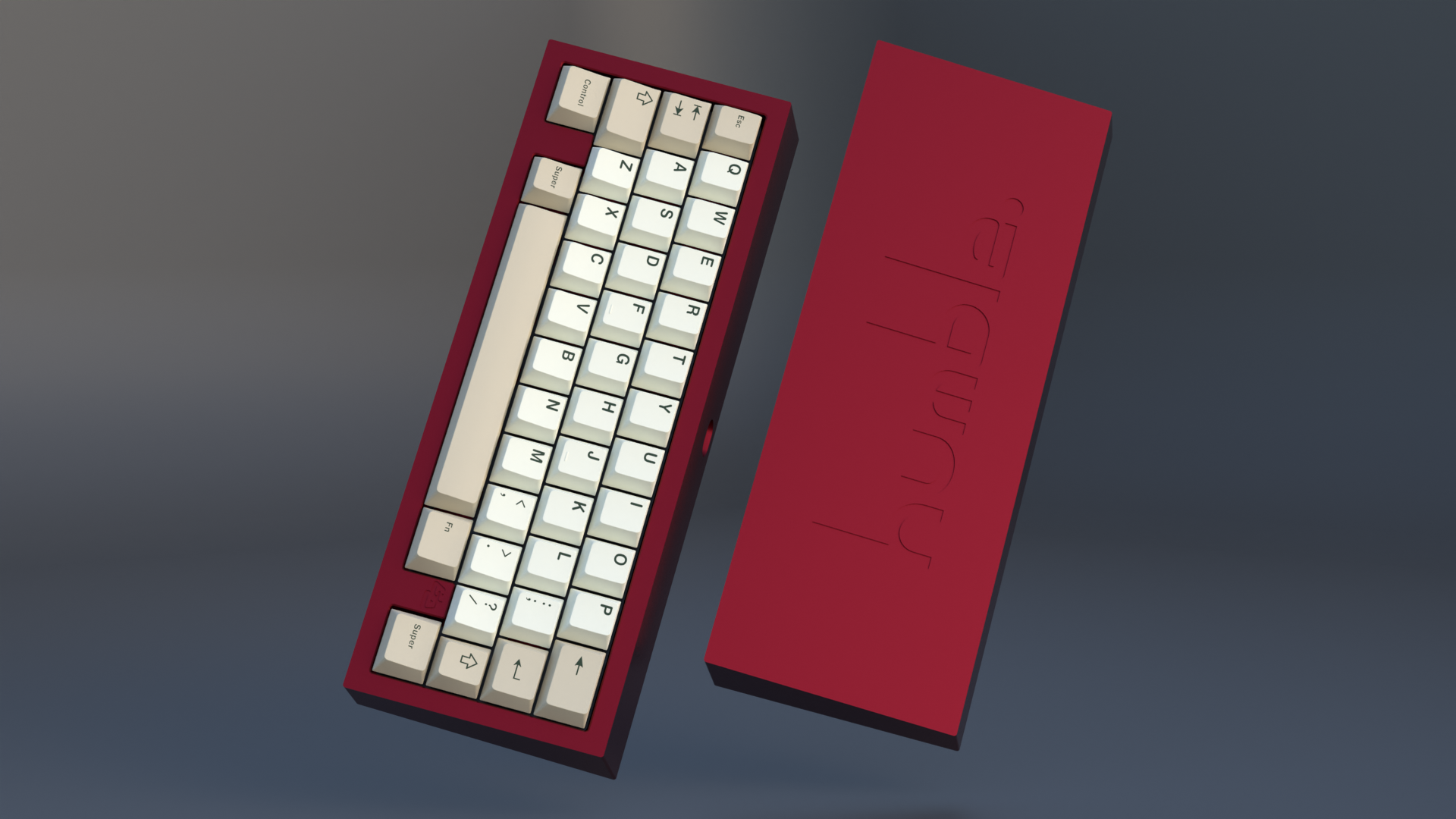

-Seamless, single piece CNC aluminum. Anodized colors are Void (black) and Heartbreak (red). Bleach (white) is e-coated.

-FR4 switch plate in standard stagger or uniform stagger configuration.

PCB:

-RP2040 powered board running Vial

-USB Type C with UDB

-MX switch compatibility

-1.2mm thick PCB

-LED backlight available (Lights not included)

Included with purchase:

-Case

-Plate

-PCBs (mainboard and daughterboard) with JST cable

-Hardware

-Bumpons

Firmware:

https://github.com/joedinkle/vial-qmk/tree/eod-keebs/keyboards/eyeohdesigns/humble40
